    تولید کننده: CNTD

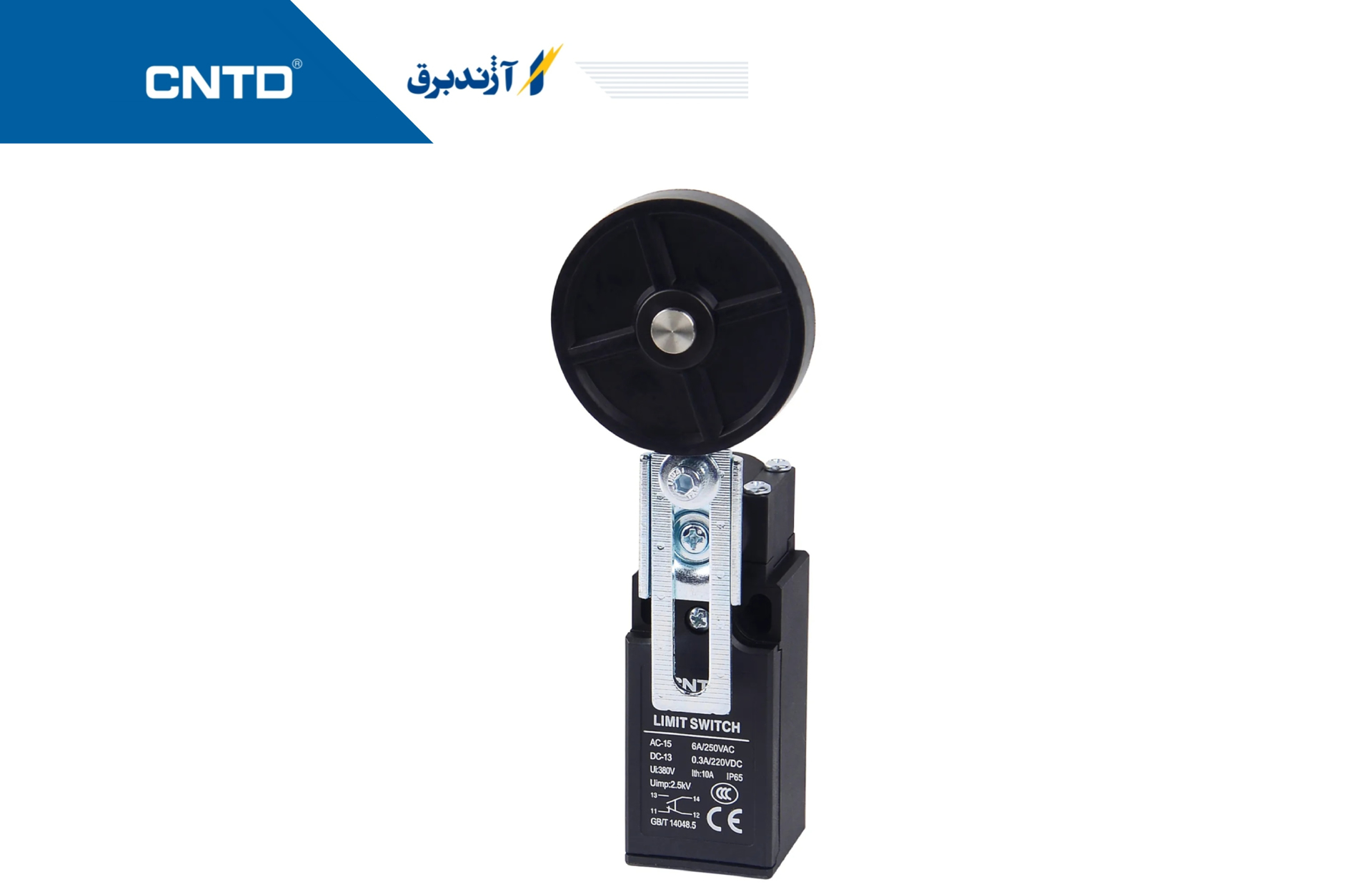

    لیمیت سوییچ دو طرفه قابل تنطیم با قرقره بزرگ بدنه باکالیت مدل CLS-191

    1,880,009/00ريال
    شناسه کالا در انبار: CLS-191

    ویژگی های محصول

    استحکام مکانیکی بالا، جنس ریخته گری آلومینیوم
    ساختار ضد آب، ضد روغن و ضد گرد و غبار
    محرک های مختلف برای کاربردهای مختلف

    مشخصات فنی



    Operation speed

    5mm-0.5m/s

    Operating frequency

    Electical: 30 operations/min

    Contact resistance

    25mΩ max. (initial value)

    Insulation resistance

    100mΩ min. (below 500VDC)



    Dielectric strength

    1500VAC, 50/60 Hz for 1 minute between current-carrying and non--current-carrying metal parts

    1500VAC, 50/60 Hz for 1 minute between current-carrying and non--current-carrying metal parts

    1500VAC, 50/60 Hz for 1 minute between each terminal and ground

    Vibration

    10-55Hz,1.5mm double amplitude



    Shock



    Mechanical durable: 1, 000m/Sec2 (about 100G’S)
    Malfunction: 300m/Sec2 (about 30G’S)



    Ambient temperature

    Using:-20~+70℃(With no icing)

    Humidity

    <95% RH

    Electrical life

    300,000 operations above

    Protection level

    IP66

    Contact

    1NO+1NC



    جریان نامی





    Rated Voltage

    Noninductive Load (A)

    Inductive Load (A)

    Resistance Load

    Lamp Load

    Inductive Load

    Motor Load

    NC

    NO

    NC

    NO

    NC

    NO

    NC

    NO



    125VAC
    250VAC





    5
    5



    5
    5



    1.5
    1



    0.7
    0.5





    3
    3



    3
    3



    2
    1.5



    1
    0.8

    14VDC

    5

    5

    3

    3

    4

    4

    3

    3

    30VDC

    5

    5

    3

    3

    4

    4

    3

    3

    125VDC

    0.4

    0.4



    250VDC

    0.2

    0.2



    Inrush Current

    N.C: below 24A, N.O: below 12A
