    تولید کننده: CNTD

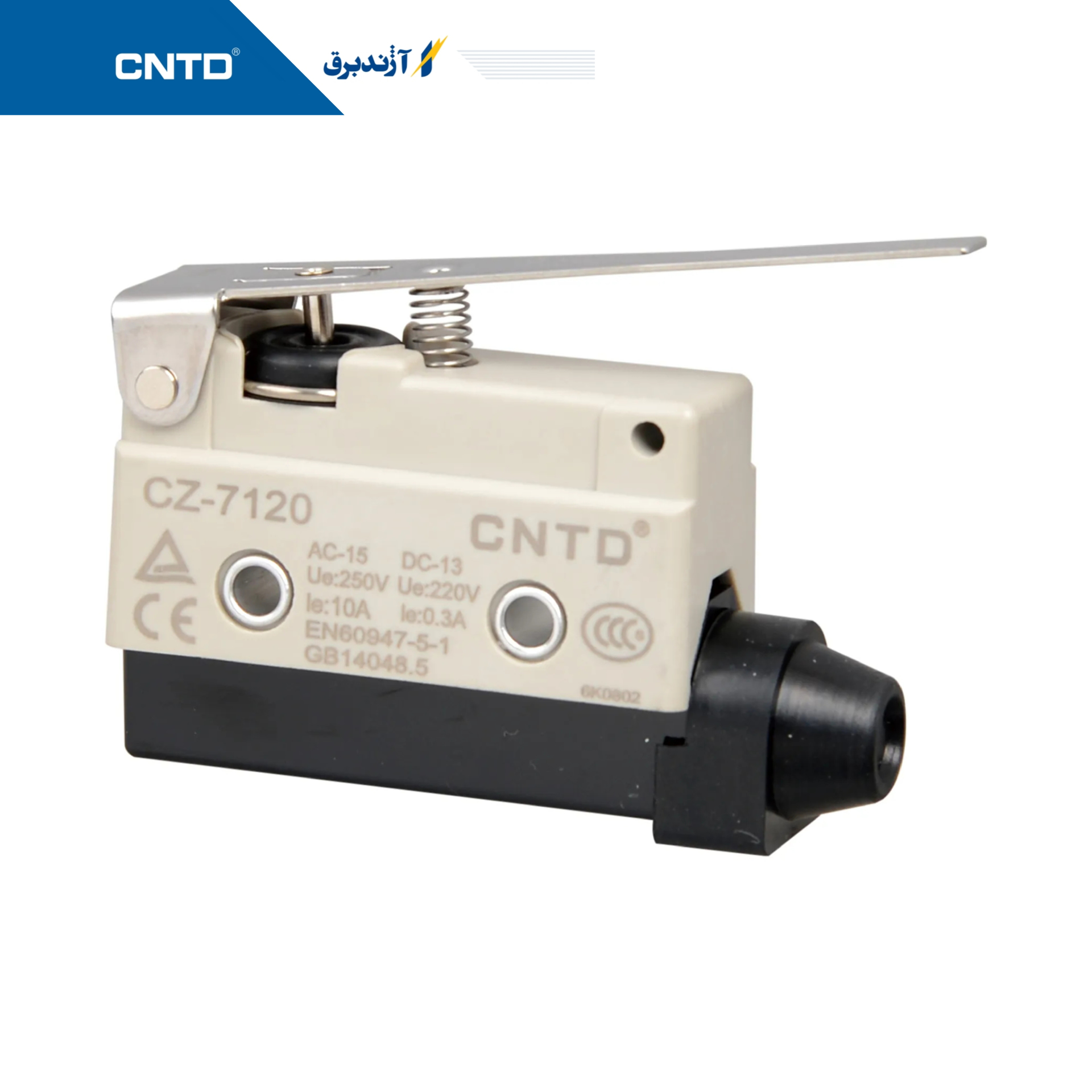

    میکروسوئیچ کاور دار طرح امرن زبانه بلند بدون قرقره مدل CZ-7120

    1,410,000/00ريال
    شناسه کالا در انبار: CZ-7120

    ویژگی های محصول

    محرک های مختلف و برخی با موقعیت عملیاتی قابل تنظیم

    پوسته پوشیده شده با پلاستیک فشرده برای ضد آب و ضد روغن

    مشخصات فنی



    speed

    0.05mm-0.5m/s

    Operating frequency

    Electical: 20 operations/min.

    Contact resistance

    25mΩmax. (initial value)

    Insulation resistance

    100mΩ above(at 500VDC)



    Dielectric strength

    1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity

    1500VAC, 50/60 Hz for 1 minute between current-carrying and non-cur- rent-carrying metal parts

    1500VAC, 50/60 Hz for 1 minute between each terminal and ground

    Vibration

    Malfunction Duration: 10-55Hz, 1.5mm double amplitude

    Shock

    Mechanical durable: 1,000m/Sec2(about 100g's)
    Malfunction: 300m/Sec2(about 30g's)

    Ambient temperature

    Using:-20~+70℃(With no icing)

    Humidity

    < 95% RH

    Electrical life

    500,000 operations above

    Weight

    About 60g

    Contact

    1NO+1NC



    جریان نامی



    Rated Voltage

    Noninductive Load (A)

    Inductive Load (A)

    Resistance Load

    Lamp Load

    Inductive Load

    Motor Load

    NC

    NO

    NC

    NO

    NC

    NO

    NC

    NO

    125VAC
    250VAC
    480VAC

    10
    10
    3

    3
    2.5
    1.5

    1.5
    1.25
    0.75

    10
    10
    2.5

    5
    3
    1.5

    2.5
    1.5
    0.75



    8VDC
    14VDC
    30VDC
    125VDC
    250VDC



    10
    10
    8
    0.5
    0.25



    3
    3
    3
    0.4
    0.2



    1.5
    1.5
    1.5
    0.4
    0.2



    6
    6
    6
    0.05
    0.03



    6
    6
    5
    0.05
    0.03



    5
    5
    2.5
    0.05
    0.03


    • سرعت عمل كرد بالا
    • توانائي عمل در محيط 10- الي80+
    • توانائي عمل در محيط با رطوبت95٪؜
    • داراي كنتاكت NO+NC
    • داراي كنتاكت 15 امپر AC
