    تولید کننده: CNTD

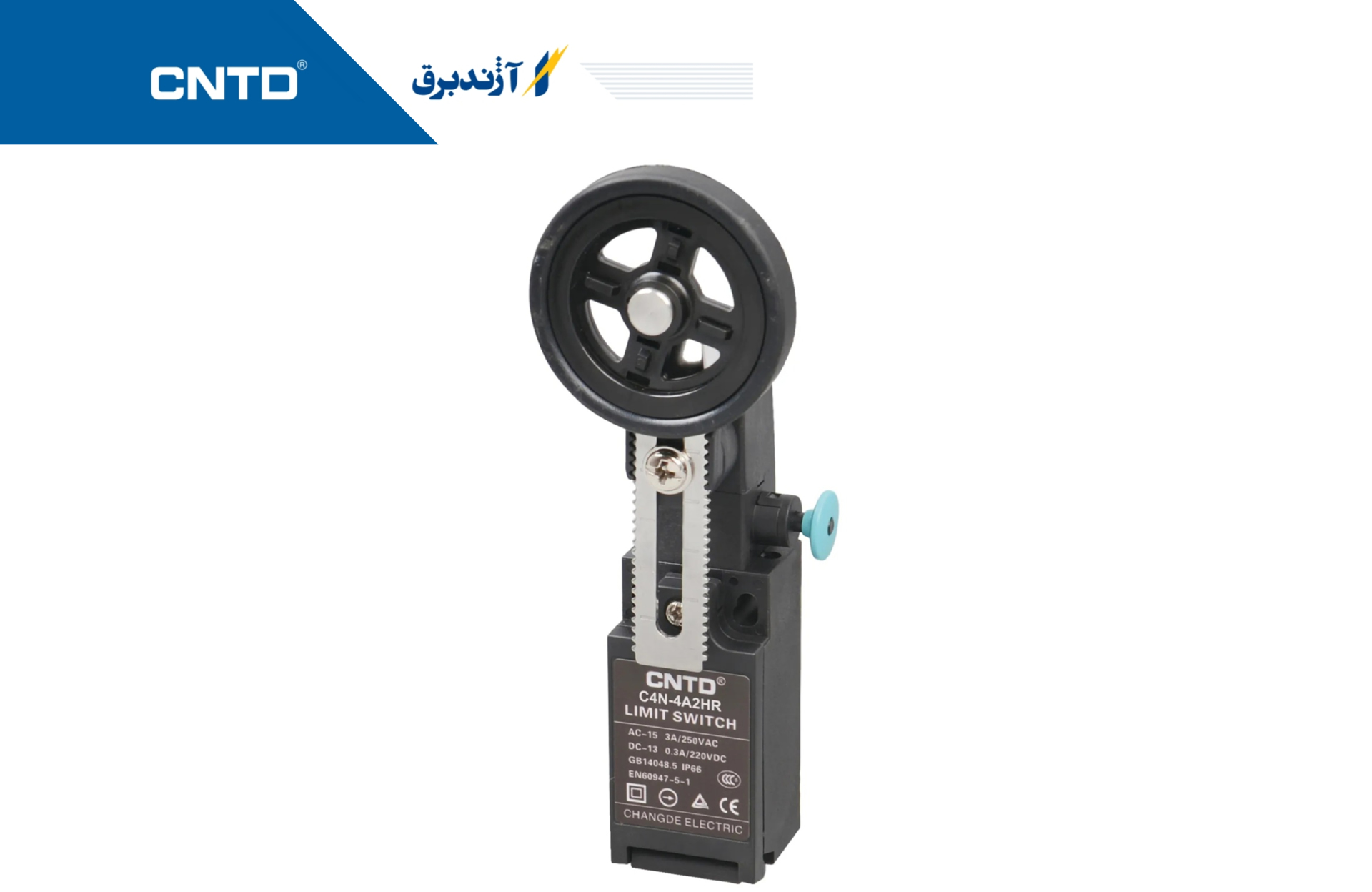

    میکروسوییچ دو طرفه ضامن دار رگلاژی با قرقره سایز 50 مدل C4N-4A2HR

    3,030,000/00ريال
    شناسه کالا در انبار: C4N-4A2HR

    ویژگی های محصول

    1. تجهیز عمل باز اجباری (فقط کنتاکت NC)، برای قطع ارتباط زمانی که کنتاکت دارای فیوزینگ و خرابی های دیگر باشد
    2. ساختار ضد آب

     مشخصات فنی:

    Protection level

    IP66

    Life

    Electrical

    More than 300,000 times

    Operating speed

    1mm-0.5m/s

    Operating frequency

    Max. 30 times/min

    Contact resistance

    25 mΩ or less

    Minimum working load

    1mA resistive load below DC5V (N standard reference value)

    Rated insulation voltage (Ui)

    300V

    Electric shock protection grade

    Class II (double insulated)

    Pollution degree (Using conditions)

    Pollution degree 3 (EN60947-5-1)



    Withstand voltage (EN60947-5-1)

    Between homopolar terminals: 2.5kV

    Between heteropolar terminals: 2.5kV

    Between terminals and uncharged metal parts: 6kV

    Insulation resistance

    Above 100MΩ

    Contact gap



    Minimum 2×0.5mm quick-action type,
    Minimum 2×2mm slow-action type



    Vibration

    Malfunction

    10 ~ 55Hz 0.75mm single amplitude

    Impact

    Duration

    1,000m/s2

    Malfunction

    300m/s2

    Ambient temperature

    Using:-20~+70℃(With no icing)

    Ambient humidity

    Less than 95% RH

    Weight

    About 92g
