تولید کننده: CNTD

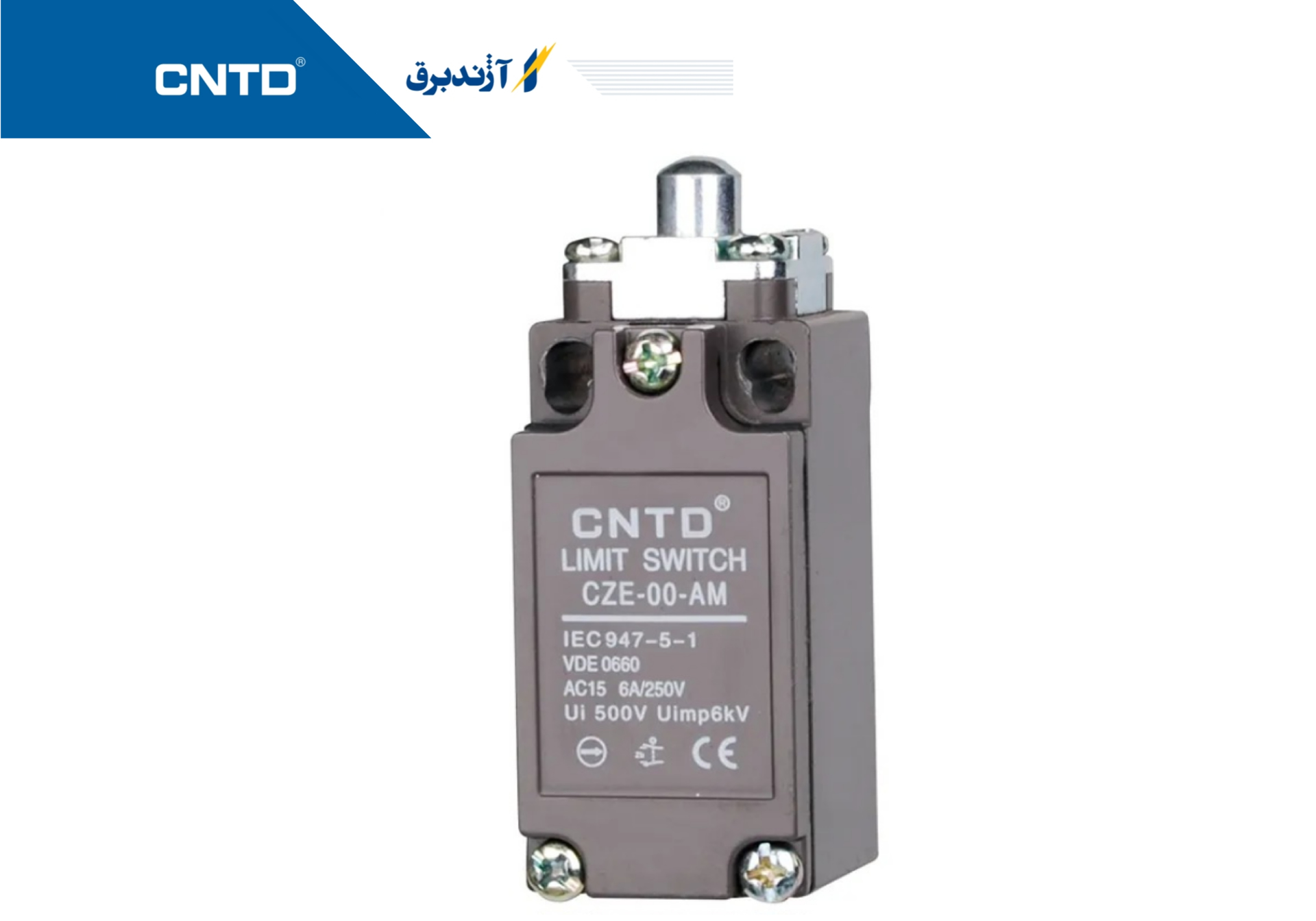

لیمیت سوییچ فشاری ساده مدل CZE-00-AM

5,590,000/00ريال

شناسه کالا در انبار: CZE-00-AM

تعداد:

مشخصات فنی:

Opertaing frequency			operat./sec (Hz)					1
Insulation resistance			500 V DC			MΩ		100
Dielectric strength			50/60 Hz per 1* V AC					2500
Rated insulation voltage	Ui IEC947-5-1		V AC					500
Rated thermal current	Ithe IEC947-5-1		A					10
Rated operating current Category AC15 A300 Category DC13 nQ300	IEC 947-5-1/EN60947-5- le le			24V 125V 230V 400V 24V 48V 120V 250V		A A A A A A A A
								10
								6
								4
								3
								10
								4
								1
								0.4
Contact resistance IEC255-7 cat.3 initial value MΩ								25
Short circuit protective devices		IEC269(IEC947-5-1) gl or gG type fuse		A				10
Rated conditionals short circuit current IEC947-5-1			A					100
Pollution degree IEC947-5-1								3
Protection degree EN 60529 IP								66
Protection against electric shock			plastic metal			class class		Ⅱ
								Ⅰ
Vibration resistance	IEC68-2-6		mm					0.35 ± 15%(10 ÷55 Hz ± 1 Hz)
Shock resistance	IEC68-2-27		11 ms			g		30
Mechanical life	cycles min							15.000.000
Electrical life	at 250VAC 6A with resistance load cos β=1 at 250VAC 6A with resistance load cos β=0.4					cycles min cycles min		500.000
								500.000
Distance between contacts	snap action type low action type			mm mm				2 × 1，25
								2 ×2
Terminals	type screw protection degree material Max. screw tightening torque						M IP N cm (kg cm) mm2 mm2 mm2	Screw with combined notch and retravtable plate
								(notch Ph. size 1)
								3，5
								20A
								Steel class 8.8/Galvanized
								120(12，24)
	max connecting capacity with prod terminal terminal numbering				rigid cable ﬁexible cable			2 × 1，5
								2 × 1，5
								1 × 1，5
								In accordance with EN50013
