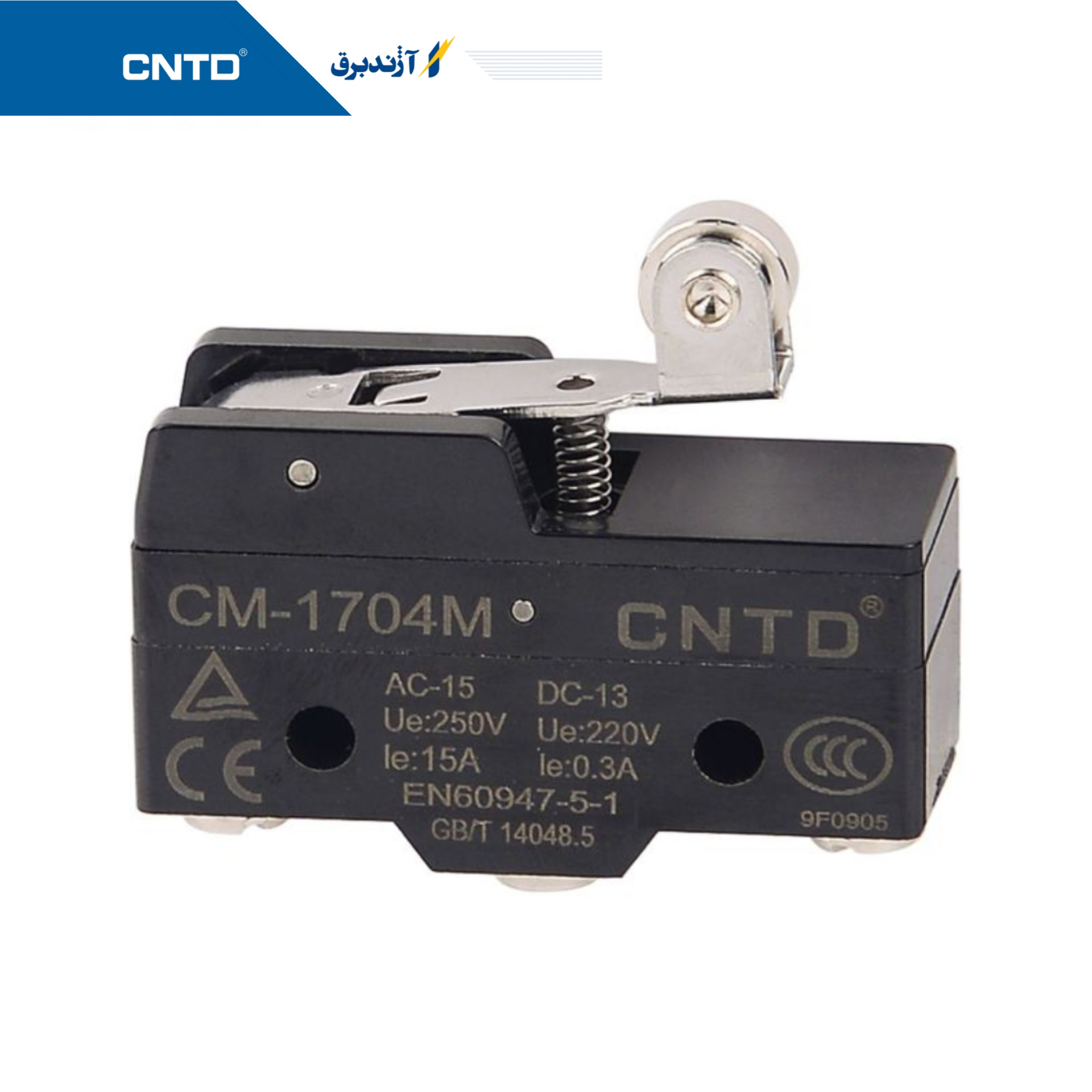

میکروسوئیچ زبانه کوتاه قرقره دار مدل CM-1704

Operation speed

0.05mm-1m/s（ Plunger type)

Operating frequency

Electical: 20 operations/min.

Contact resistance

15mΩ max. (initial value)

Insulation resistance

100mΩ min. (at 500VDC)

Dielectric Strength

1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity

1500VAC, 50/60 HZ for 1 minute between current-carrying and non--current-carrying metal parts

1500VAC, 50/60 HZ for 1 minute between each terminal and ground

Vibration

(*10 to 20Hz): 1.5 Vibration amplitude action duration: 10 to 55Hz

Shock

Mechanical durable: 1, 000m/Sec2 (about 100G'S)
Malfunction: 300m/Sec2 (about 30G'S)

Ambient temperature

Using：-20~+80℃（With no icing）

Humidity

General purpose type: 85% RH max., Sealed type: 95% RH max.

Electrical life

500,000 operations above

Weight

About 22 to 58g

Rated Voltage

Noninductive Load (A)

Inductive Load (A)

Inrush Current

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

NC

NO

125VAC
250VAC
500VAC

15
15
3

3
2.5
1.5

1.5
1.25
0.75

15
15
2.5

5
3
1.5

2.5
1.5
0.75

30
max.

15
max.

8VDC
14VDC
30VDC
125VDC
250VDC

15
15
6(2)
0.4
0.2

3
3
3
0.4
0.2

1.5
1.5
1.5
0.4
0.2

15
10
5
0.05
0.03

5
5
5
0.05
0.03

2.5
2.5
2.5
0.05
0.03
