مشخصات فنی
Type Item

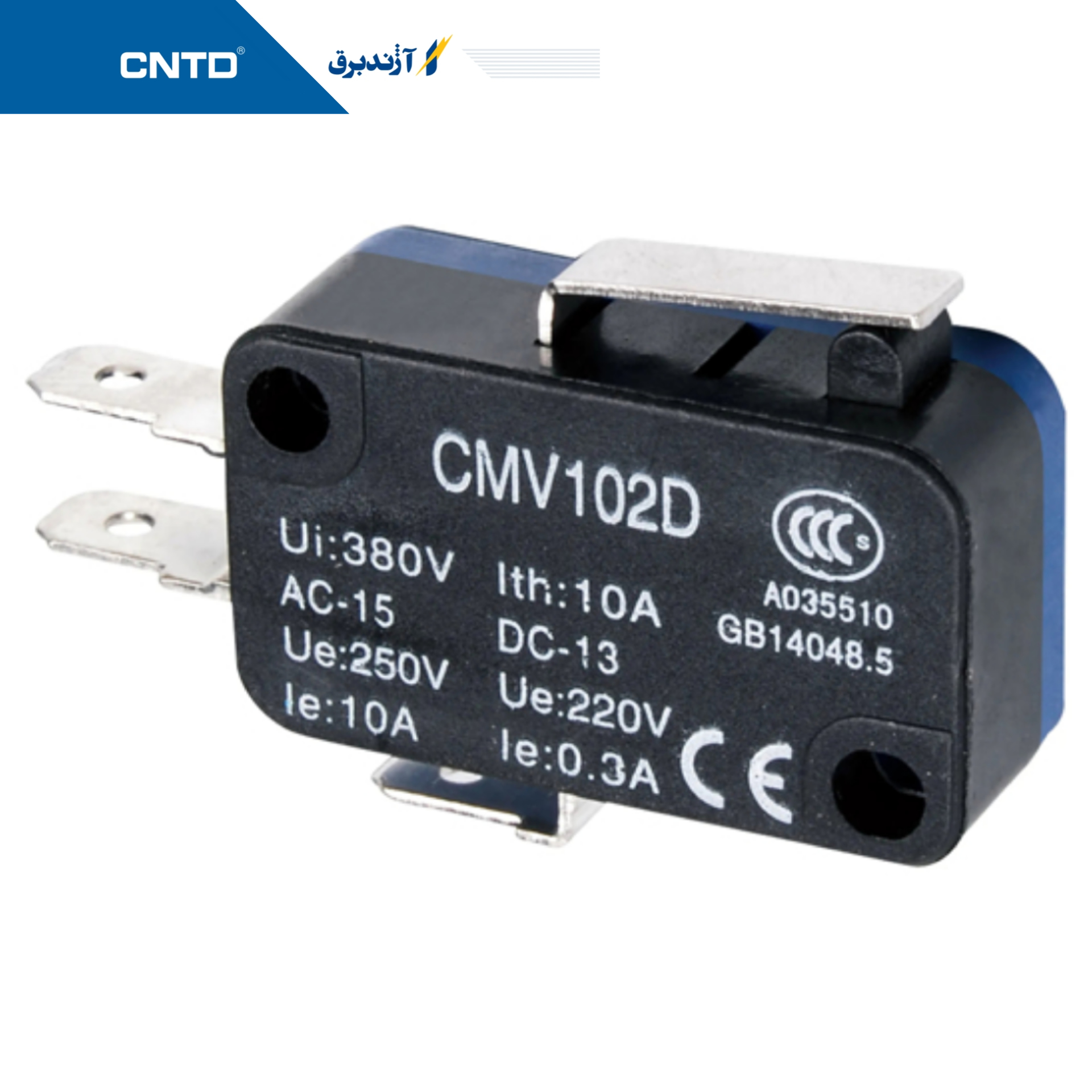

CMV 10 CMV 10 type
Operation speed
0.05mm~1m/s( Button type)
Operating frequency
Electrical：20 operations/min
Insulation resistance
100mΩ above(at 500VDC)
Contact resistance
15mΩmax. (initial value)
Withstand voltage
Non-continuous terminals
1000VAC, 50/60 Hz for 1 minute
current-carrying and non-current-carrying metal parts, Between terminal and earthing
1500VAC, 50/60 Hz for 1 minute
Vibration
Misoperation
10 to 55Hz,1.5mm pairs swing
Shock
Durable
Maximum 1000 m/S2 (100G)
Maximum 200 m/S2 (100G)
Life
Electrical
More than 300000 times
Temperature
Using：-20~+70℃（With no icing）
Humidity
85%RH (+5~+35℃ )Below 85% RH
جریان نامی
