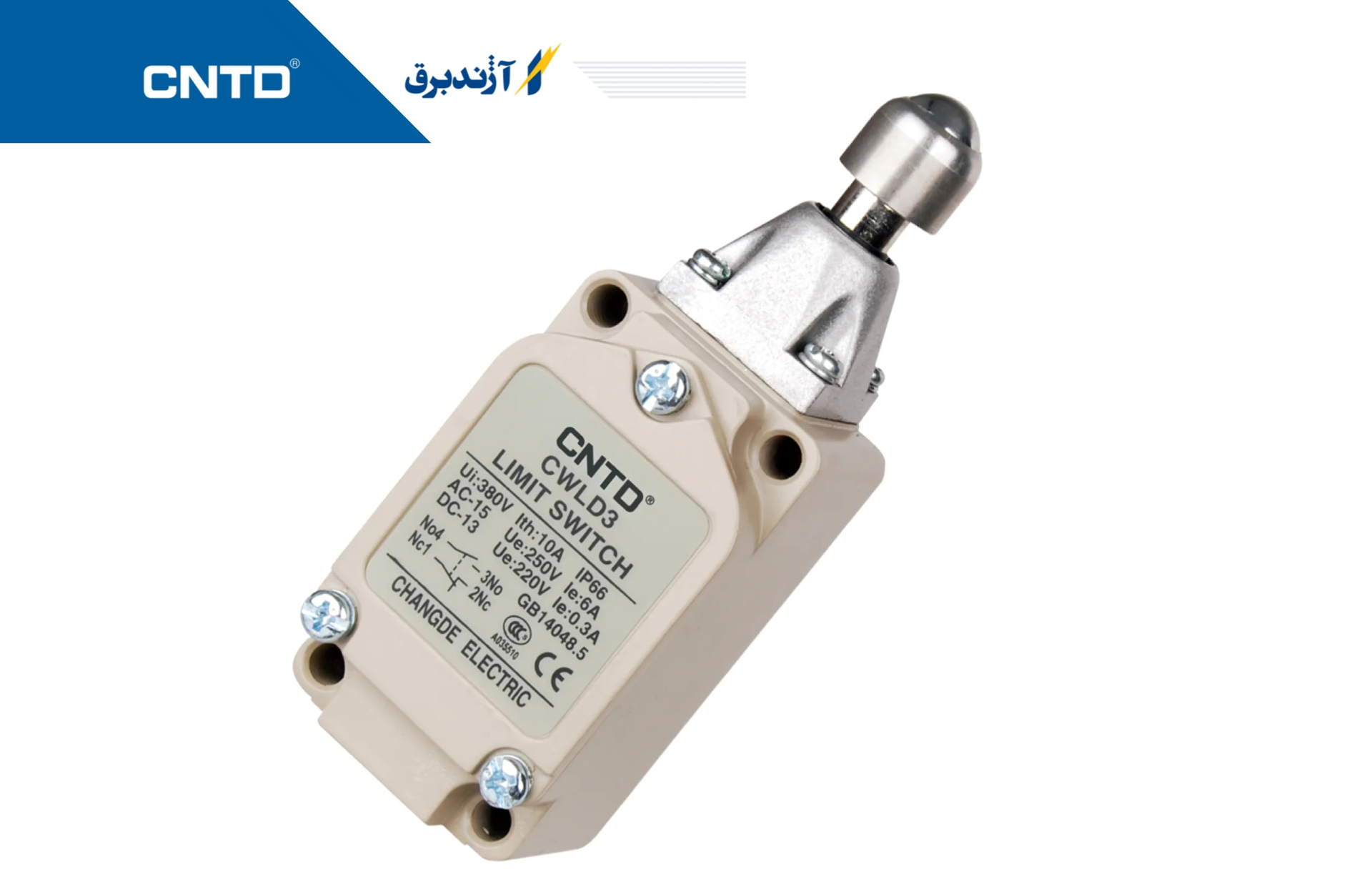

میکروسوییچ ساچمه ای فشاری تیپ سنگین طرح امرن مدل CWLD3

Operation speed

1mm-1m/s

Operating frequency

Electical: 30 operations/min

Contact resistance

25mΩ max. (initial value）

Insulation resistance

100mΩ min. （below 500VDC）

Dielectric strength

1500VAC, 50/60 Hz for 1 minute between current-carrying and non--current-carrying metal parts

1500VAC, 50/60 Hz for 1 minute between current-carrying and non--current-carrying metal parts

1500VAC, 50/60 Hz for 1 minute between each terminal and ground

 Vibration

10-55Hz,1.5mm double amplitude

Shock

Ambient temperature

Using：-20~+80℃（With no icing）

Humidity

<95% RH

Electrical life

500,000 operations above

Protection level

IP66

contact

1NO+1NC

Rated Voltage

Noninductive Load (A)

Inductive Load (A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

125VAC

10

3

1.5

10

5

2.0

250VAC

5

2

1

5

3

1.0

480VAC

3

1.5

0.8

3

1.5

0.8

600VAC

1

1

0.5

1.5

1

0.5

8VDC

10

6

3

10

6

14VDC

10

6

3

10

6

30VDC

6

4

3

6

4

125VDC

0.8

0.2

0.2

0.8

0.2

250VDC

0.4

0.1

0.1

0.4

0.1
